| Technical Specification | Unit | ML4120 |

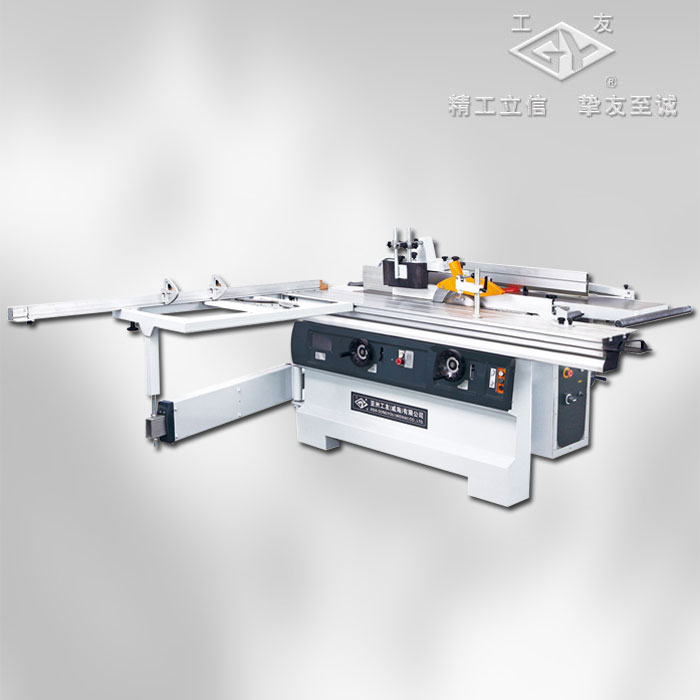

| Precision panel saw series①Max.moveable distance of table | mm | 2250 |
| ②Max.sawing thickness | mm | 60 |
| ③Main saw blade dia. | mm | Ø300 |
| ④Main spindle dia. | mm | Ø30 |
| ⑤Main spindle speed | r/min | 3800 |
| ⑥Motor power | kW | 3 |
| ⑦Scoring saw spindle speed | r/min | 8000 |
| ⑧Scoring spindle dia. | mm | Ø20 |
| ⑨Scoring sawblade dia. | mm | Ø100 |
| ⑩Max.sawblade tilt angle | 45° | |
| Milling Machine Specification ①Milling spindle stroke | mm | 200 |
| ②Max. milling height | mm | 120 |
| ③Milling spindle diameter | mm |
Ø35 |
| ④Milling spindle motor power | kW | 3 |
| ⑤ Milling spindle speed | r/min | 3500/6000/8000/10000 |
| Total power | kW | 6 |
| Dust outlet dia. | mm | Ø120 |
| Overall dimensions | mm | 2539×2509×1330 |
| Net.weight | kg | 660kg |
